This guide applies to Mac computers
Note: Microsoft Entra ID is the new name for Azure AD (Azure Active Directory)

​
About Passport in Federated Microsoft Entra ID Environments

Passport in a federated Microsoft Entra ID environment enables authentication when your organization uses Entra ID as a service provider (SP) federated with an external identity provider. This configuration requires special setup to ensure Passport can authenticate users through the federated identity system.

​
How It Works

In federated environments, Passport needs to be configured to use Entra ID as the source of truth for authentication, even when the actual identity provider is external. This requires creating a Home Realm Discovery (HRD) policy to direct authentication requests appropriately. When using Passport in a federated Microsoft Entra ID Environment, you’ll need to create a Home Realm Discovery (HRD) policy in Entra ID using PowerShell. An HRD policy allows Passport to use Entra ID as the source of truth for authenticating users when deploying Passport in a federated environment where Entra ID acts as the service provider (SP) federated with an external identity provider (IdP).

​
Prerequisites

  • You have an Azure account with an active subscription. If you don’t already have one, you can create an account for free here.
  • You have access to an Azure user with one of the following roles: Global Administrator, Cloud Application Administrator, Application Administrator, or service principal owner.
  • You have to install the AzureADPreview module.
    • You cannot install both the preview version and the GA version on the same computer at the same time. You will need to uninstall the AzureAD module before installing the AzureADPreview module.
  • You have a Windows or Windows Server machine (can be virtual) with the latest Azure AD PowerShell cmdlet preview installed.
  • Both users’ and users’ passwords are already being synced by the federated identity provider.
    • In an Azure AD and Active Directory hybrid setup, password hash sync must be enabled between Azure AD and Active Directory using Microsoft Entra Connect Sync.
    • In a cloud IdP scenario, be sure that both usernames and passwords are synced from the federated IdP.
  • You have already created the Iru Passport Enterprise app in Entra ID, per the instructions in this support article.
  • You have created the Passport Library Item in Iru Endpoint using this support article.

​
Authentication Flow in a Federated Environment

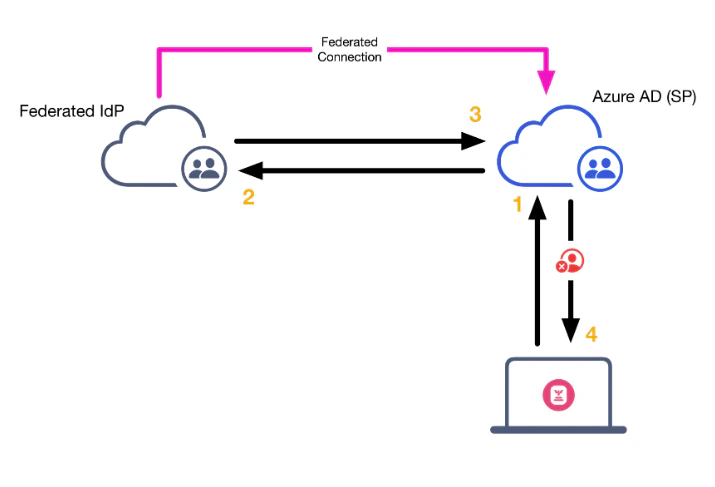

The diagram below depicts the Passport authentication flow when Entra ID acts as a service provider (SP) federated with another identity provider (IdP). When a user attempts to authenticate via Passport, the request looks like this:
1

Passport sends authentication request

Passport sends an authentication request to Azure AD.
2

Azure AD forwards request

Azure AD forwards the auth request to the federated IdP.
3

IdP validates request

The auth request is validated by the IdP and sent back to Azure AD.
4

Authentication fails

Azure AD receives the validation but has no reason to forward it to Passport, at which point the user’s authentication attempt fails, and an error is delivered to Passport.

​
Authentication Flow with HRD Configured

The diagram below depicts the Passport authentication flow with an Azure AD Home Realm Discovery policy. When a user attempts to authenticate via Passport, the request looks like this:
1

Passport sends authentication request

Passport sends an authentication request to Azure AD.
2

Entra ID validates with HRD policy

Entra ID validates the authentication request using the HRD policy and responds to Passport with a successful user authentication response.

​
Create an HRD Policy

An HRD Policy is only required when using the Mac Login Passport authentication mode. If you are using the Web Login Passport authentication mode, the HRD Policy is not required.
1

Access Windows computer

Go to the Windows computer.
2

Open PowerShell as administrator

Open PowerShell as an administrator.
3

Connect to Entra ID

Connect to your Enra ID tenant with the command Connect-AzureAD. A web view will open, prompting you will enter your Entra ID credentials.
4

Create HRD policy

Create a new policy with the command below. This will allow users to authenticate to a specific application directly with Entra ID with their username and password in a federated environment. If you have existing HRD policies in your environment, you can set the DisplayName to something like IruHRDPolicy.
New-AzureADPolicy -Definition @("{`"HomeRealmDiscoveryPolicy`":{`"AllowCloudPasswordValidation`":true}}") -DisplayName IruHRDPolicy -Type HomeRealmDiscoveryPolicy
5

Get policy ObjectID

Run the command Get-AzureADPolicy to list the policy that you’ve just created and copy the ObjectID string listed under the ID column in the output.
6

Get Service Principal ObjectID

Run the command Get-AzureADServicePrincipal to get the Service Principal (Azure Enterprise Application) ObjectID.
If you know the name of the Enterprise Application, you can add the -SearchString your_app_name_here to the command above. Example: Get-AzureADServicePrincipal -SearchString “Iru Passport”
7

Add application to HRD policy

Run the following command to add the Iru Passport Enterprise Application to the HRD policy. Replace <ObjectID of the Service Principal> with the Iru Enterprise App ObjectIDcopied earlier. Replace <ObjectId of the Policy> with the HDR ObjectIDcopied earlier.
Add-AzureADServicePrincipalPolicy -Id <ObjectID of the Service Principal> -RefObjectId <ObjectId of the Policy>
If you do not create the right policy, you can use the following command to remove it and try again.
Remove-AzureADServicePrincipalPolicy -id <ObjectId of the Service Principal> -PolicyId <ObjectId of the policy>
8

Verify policy assignment

Check the apps assigned with Get-AzureADPolicyAppliedObject -id <ObjectId of the Policy>.
9

Disconnect from Azure

To disconnect the PowerShell session from Azure, use the command Disconnect-AzureAD.
