User Directory Integration with Google Workspace

The Google Workspace integration in Iru Endpoint syncs Google Workspace user and group objects into the Iru Endpoint user directory. Iru Endpoint uses these delegated permissions through the Google API to sync that directory information. For why directory integration matters, marketplace filters, sync, re-authentication, and removal, see User Directory Integration Overview and Providers.

​
Add a Google Workspace Integration

1

Open Integrations

In the sidebar, select the Account Menu Button, then select Integrations.
Screenshot of the account menu with Integrations option highlighted
2

Browse all integrations

Select Browse all integrations in the upper-right of the Integrations page.
3

Select Google Workspace

Select the Google Workspace tile.
4

Start Setup

Select Get Started.
5

Enter Integration Name

Enter a unique name, which will be used in Iru Endpoint to show the directory from which a user originates.
6

Sign in with Google

Select Sign in with Google.
7

Complete Authentication

Sign in using a Google account with admin access to the directory you want to integrate.
8

Confirm Account Permissions

Review the basic account information Iru Endpoint requests, then select Continue.
When you grant access in Google, Google still names this app Kandji . Allow the Kandji app to connect your Google Workspace directory to Iru Endpoint.

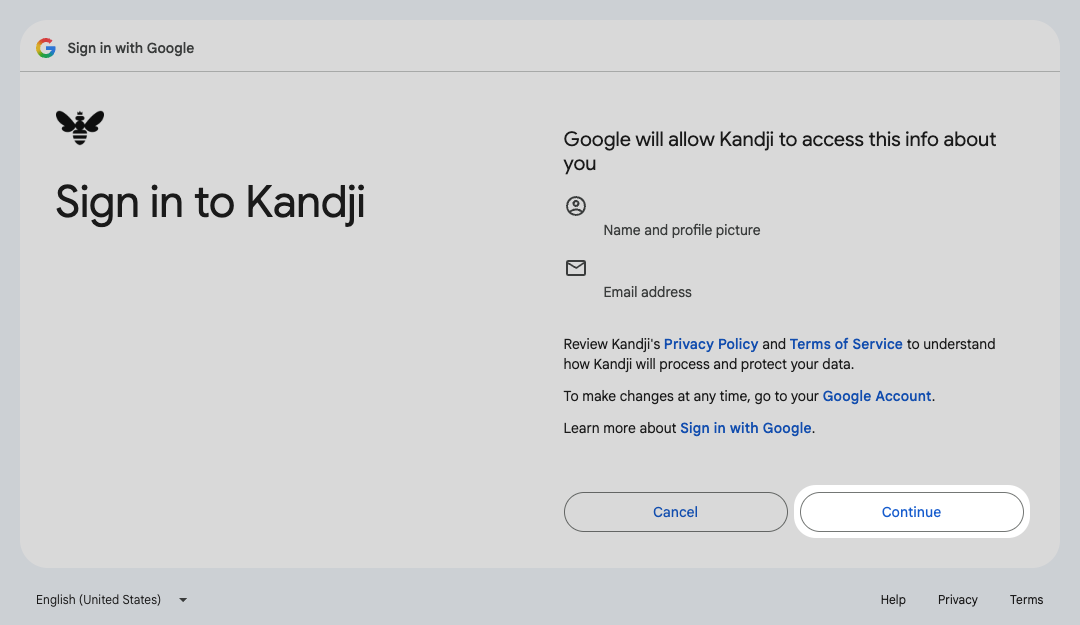

Google Sign in to Kandji screen requesting name, profile picture, and email address, with Continue highlighted
9

Select All Permissions

On the permissions screen, select the checkbox for Select all.
When you re-authenticate the integration, select Select all again, then select Continue. Re-authenticating does not restore access to your users and groups unless you grant those permissions again.
10

Grant Access to Users and Groups

Confirm that View groups on your domain and See info about users on your domain are selected, then select Continue.

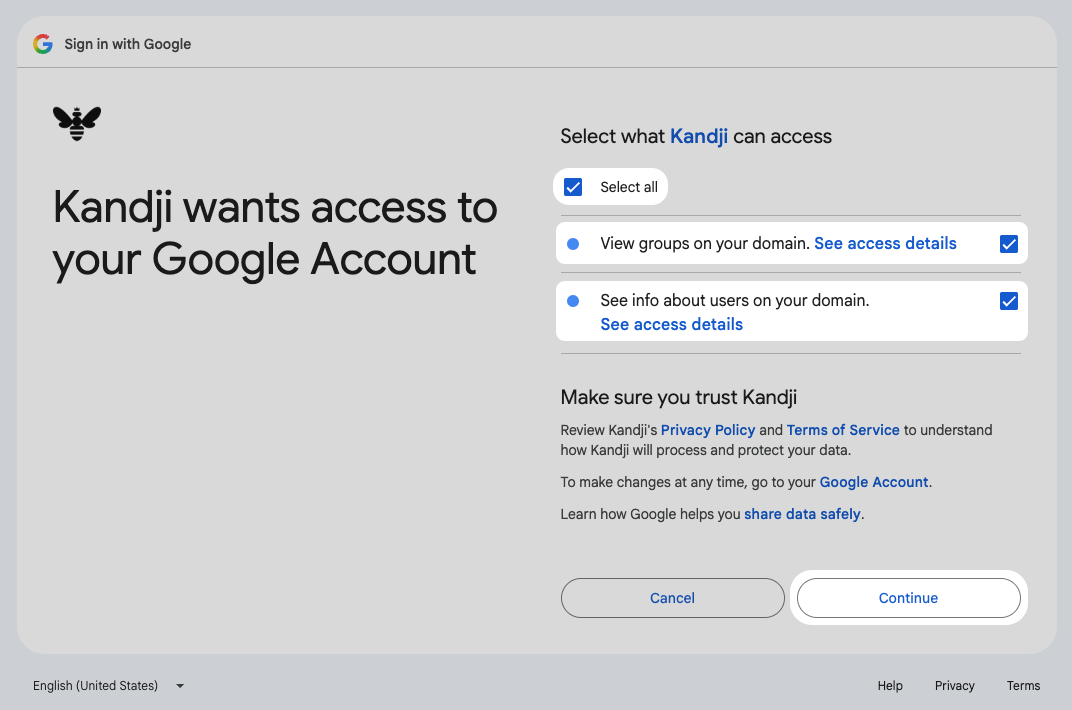

Google access screen with Select all, View groups on your domain, and See info about users on your domain selected, with Continue highlighted
If you continue without allowing Iru Endpoint to view groups on your domain and see info about users on your domain, the integration connects successfully but your users and groups do not sync correctly. To correct it, re-authenticate the integration and grant every requested permission.
11

Confirm the Integration

You will see the new user directory on the Integrations page.
After the integration is connected, you can view additional information, force a user directory sync, re-authenticate, or remove the integration.

​
Google Workspace Permissions

The following permissions are automatically requested and required to successfully sync Google Workspace users into Iru Endpoint. A Google Administrator must have sufficient permissions to delegate the following permissions to Iru Endpoint.

​
Troubleshooting Users and Groups Sync

If users or groups do not appear in Iru Endpoint after you connect the integration, work through the following checks in order.
The most common cause is incomplete consent. If the administrator continued past the Google permissions screen without selecting every permission, the integration connects and reports success, but Iru Endpoint cannot read your directory.Re-authenticate the integration, select the checkbox for Select all on the permissions screen, then select Continue. Once the integration reconnects, force a user directory sync instead of waiting for the next four-hour sync.
Iru Endpoint reads your directory using the privileges of the administrator who authorized the integration, so that account needs read access to both users and groups.In the Google Admin console, go to Directory > Users, select the account you used to authorize the integration, then open Admin roles and privileges. Open each assigned role and confirm that it grants read privileges for users and groups.The Directory API belongs to the Google Admin SDK and is limited to administrators. When the account lacks those privileges, Google returns a 403 Not Authorized to access this resource/api error and no directory data reaches Iru Endpoint. For the full list of scopes, see Google’s Choose Directory API scopes.
Google Workspace administrators can restrict which applications reach Google Workspace APIs, which blocks the sync even when the consent screen looks correct.In the Google Admin console, go to Security > Access and data control > API controls > App access control, then confirm that the OAuth app used by Iru Endpoint is Trusted rather than Limited or Blocked. On the Google consent screen, that app is still named Kandji.For details on how these controls behave, see Google’s Control which apps access Google Workspace data.
Google applies consent to the account that is currently signed in, so an existing session for a non-administrator account can authorize the integration with the wrong user.Open a private browsing window in Safari or an Incognito window in Chrome, close any other browser windows that hold a Google session, then sign in to Iru Endpoint and re-authenticate the integration with the correct administrator account.

​
Disconnect Integration from Google

1

Access Google Permissions

Go to https://myaccount.google.com/permissions. Ensure you are signed in with the same account that configured the integration originally.
2

Remove Kandji Application

Select Remove for the Kandji application in the list of applications. Google still names this app Kandji.
