This guide applies to Mac computers, iOS devices, iPadOS devices, Apple TV, and Apple Vision Pro devices
Set up Apple enrollment so you can add Mac computers, iPhone, iPad, Apple TV, and Apple Vision Pro devices to Iru Endpoint and get the right apps, settings, and security controls applied so people can get to work.

​
How It Works

Iru Endpoint supports two approaches: Automated Device Enrollment (ADE) for corporate-owned devices (they enroll automatically during setup), and manual enrollment through the Enrollment Portal for Bring Your Own Device (BYOD). For ADE, you assign devices in Apple Business Manager (ABM) to Iru Endpoint, then assign them to a Blueprint in Iru Endpoint. For manual enrollment, you share the Enrollment Portal link and Enrollment code with users; they enter the Enrollment code, then sign in (if you require authentication) and install the enrollment profile. In both cases, devices are assigned to a Blueprint and configured according to your policies.

​
Automated Device Enrollment (ADE)

ADE allows devices to enroll automatically during the initial setup process. This is the recommended method for corporate-owned devices.

​
Prerequisites

​
ADE Enrollment Flow

When users set up their devices, each device connects to Apple’s servers during setup and Iru Endpoint automatically applies the assigned Blueprint. Each device gets enrolled and configured according to your policies, then the user completes setup with pre-configured settings.

​
Assign devices in Apple Business Manager

1

Navigate to Devices

In Apple Business Manager or Apple School Manager, navigate to Devices.
2

Select Devices

Select the devices you want to assign.
3

Assign to MDM

Choose Assign to Mobile Device Management (MDM) Server.
4

Select Iru Endpoint

Select Iru Endpoint as the MDM server.
5

Confirm Assignment

Confirm the assignment when prompted.

​
Configure Blueprint assignment

1

Navigate to Automated Device Enrollment

In Iru Endpoint, navigate to Enrollment → Automated Device Enrollment.
2

Filter and View Devices

Filter by Awaiting Enrollment (or All) to view unenrolled devices.
3

Assign to Blueprint

Select the devices and assign them to the appropriate Blueprint.
4

Configure Authentication (optional)

Configure any required authentication settings. See Require Authentication with Automated Device Enrollment for details.
5

Confirm and Sync

Confirm devices appear and use Fetch Now to sync from Apple if they do not.

​
ADE Library Item Assignment

Optionally set or override the ADE Library Item for a device (or multiple devices) instead of using the one from its Blueprint or Blueprint Routing.
1

Navigate to Automated Device Enrollment

In Iru Endpoint, go to Enrollment → Automated Device Enrollment.
2

Filter and Select Devices

Filter by Awaiting Enrollment (or All) to view unenrolled devices, then select the device(s) whose ADE Library Item you want to set or override.
3

View the ADE Library Item Column

The ADE Library Item column shows the name of the ADE Library Item assigned to the Blueprint selected for enrollment or Blueprint Routing, or None if none is assigned.

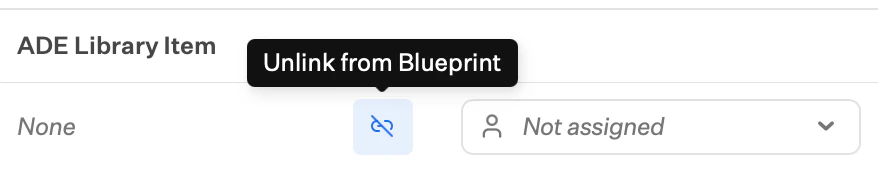

ADE Library Item column showing None and Unlink from Blueprint button
4

Unlink from Blueprint

To override the assignment so you can choose a different ADE Library Item, click Unlink from Blueprint or Unlink from Blueprint Routing, whichever appears.
5

Re-link or select an ADE Library Item

Once unlinked, choose Re-link to Blueprint or Re-link to Blueprint Routing, or select an ADE Library Item from the list. You can do this for one device or for many via multi-select.

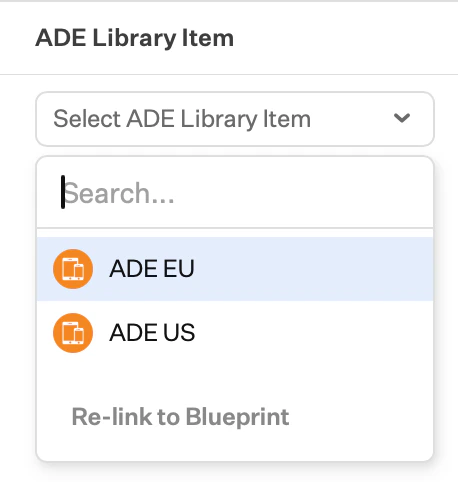

ADE Library Item dropdown with Select ADE Library Item and Re-link to Blueprint options
A direct assignment is sticky and will always apply to the device unless you manually re-link it to the Blueprint or Blueprint Routing. Re-linking can be done one device at a time or in bulk.

​
Manual Enrollment

Manual enrollment allows users to enroll their devices through the Iru Endpoint Enrollment Portal.

​
Setup Manual Enrollment

1

Configure Enrollment Portal

a. Go to Endpoint → Enrollment → Manual Enrollment in Iru Endpoint.b. Ensure the Enrollment Portal is active.c. Determine which Blueprint you want devices to be added to after enrollment.
2

Configure Authentication

a. Click the Blueprint and select Require authentication if you want users to authenticate prior to enrollment.b. This integrates with your Single Sign-On (SSO) configuration for secure enrollment. If you see a banner that No single sign-on connections are configured, go to Access (Account Menu Button → Access) and configure Single sign-on, then return and select Require authentication. See SSO Setup for setup steps.
3

Share Enrollment Information

a. Copy the Enrollment Portal link from Enrollment → Manual Enrollment.b. Copy the Enrollment code for the Blueprint you chose.c. Share the Enrollment Portal link and Enrollment code with your end users.d. Provide a short note that they’ll enter the Enrollment code, then sign in (if required), and follow on-screen prompts to complete enrollment.

​
User Enrollment Process

When users access the Enrollment Portal, they’ll enter the provided Enrollment code and authenticate using SSO if you’ve enabled that option. They then download and install the enrollment profile to complete enrollment and receive device configuration.

​
Enrollment Authentication

​
SSO Authentication

To enhance security, you can require SSO authentication during enrollment. Configure SSO in Iru Endpoint (see SSO Setup), then enable Require authentication on your Blueprint. Users will authenticate with their identity provider before enrollment.

​
Enrollment Codes

Each Blueprint has a unique Enrollment code that users need to enroll their devices. You can share codes directly with users, use SSO authentication to automatically assign users to the correct Blueprint, or create multiple Blueprints for different user groups or departments.

​
Best Practices

Test your Blueprints on designated testing devices before enrolling production hardware. Use Automated Device Enrollment for corporate-owned devices, as it provides the best user experience. Enable SSO authentication for secure enrollment and provide clear instructions to users about the enrollment process. You can monitor enrollment success and troubleshoot issues using the Activity page.

​
Troubleshooting

​
Trial tenant device limit

Trial tenants are limited to a total of 10 devices. Once this limit is reached, a banner will be displayed until the device count becomes less than 10 again.

​
Common Issues

If devices aren’t appearing, check your Apple Business Manager configuration and device assignment. For enrollment failures, verify your Blueprint configuration and network connectivity. If you’re seeing authentication issues, check that SSO is configured correctly and that users have the right access.

​
Support Resources

Check the Activity page for enrollment logs and errors, and review Device records for enrollment status. Contact Support if you need additional assistance.

Blueprint Routing

Configure dynamic Blueprint assignment during device enrollment using Assignment Rules

Configuring Apple Enrollment

Configure Apple device enrollment with Automated Device Enrollment (ADE)

User Experience with Apple Enrollment

What to expect when enrolling your device through the Enrollment Portal

Configure Require Authentication for Enrollment

Configure authentication requirements for device enrollment across Apple, Windows, and Android platforms

​
Next Steps

After setting up Apple enrollment:
1

Test Enrollment

Test the process with a few devices and monitor compliance and policy enforcement on the Activity page.
2

Set Up Enrollment for Other Platforms (optional)

To enroll Windows or Android devices as well, see Windows Enrollment or Android Enrollment.
If you missed a step or want to review the path, see Getting Started for the full guide.
