This guide applies to Mac computers

​
About Sysdiagnose

A sysdiagnose in macOS is a powerful tool designed to help troubleshoot and debug complex system issues. It collects a wide range of diagnostic data from your Mac, making it invaluable for identifying performance problems, crashes, and other system anomalies. Sysdiagnoses can be generated using a few different methods, each of which may apply for different levels of user access.

​
How It Works

Sysdiagnose collects comprehensive system information to help diagnose issues. The tool gathers performance data, logs, hardware information, and system state details that can be analyzed to identify problems or performance bottlenecks.

​
What Sysdiagnose Collects

When you run sysdiagnose, it gathers an extensive array of information, including:
  • System-wide performance profiles - Captures the state of running processes
  • Filesystem activity logs - Reports on system calls and page faults related to filesystem usage
  • Process information - Provides detailed data on running processes and memory usage
  • Kernel memory usage - Includes data on kernel zones and loaded kernel extensions
  • System and crash logs - Collects all relevant logs to help diagnose issues
  • Hardware and software configuration - Similar to the System Information app, but more detailed
  • Network and power management data - Details on current network status and power settings

​
Generating a Sysdiagnose Using a Keyboard Shortcut

1

Open Finder

Click the Finder icon in the Dock to ensure that Finder is in the foreground.
2

Use keyboard shortcut

All at once, press Command + Option + Shift + Control + Period (.) on the keyboard.
3

Wait for completion

After a few moments, a Finder window should appear with a tar.gz file shown.
4

Provide to support

If the sysdiagnose was requested by Iru Endpoint Support, please zip it and provide the entire bundle.

​
Generating a Sysdiagnose Using the Command Line

This method requires administrator privileges.
1

Launch Terminal and run command

Launch Terminal.app and enter the following command:
sudo sysdiagnose -f ~/Desktop/
2

Wait for file generation

Wait a few moments for a file ending in .tar.gz to appear on the logged-in user’s Desktop. If you logged into Terminal with a different user than is logged into the Mac, the file will be on the Terminal user’s Desktop.
3

Provide to support

If the sysdiagnose was requested by Iru Endpoint Support, please zip it and provide the entire bundle.

​
Generating a Sysdiagnose Using Activity Monitor

This method requires administrator privileges.
1

Open Activity Monitor

Open the Activity Monitor app on your Mac.
2

Access system diagnostics

Click the ellipses at the top of the Activity Monitor window.Select System Diagnostics…

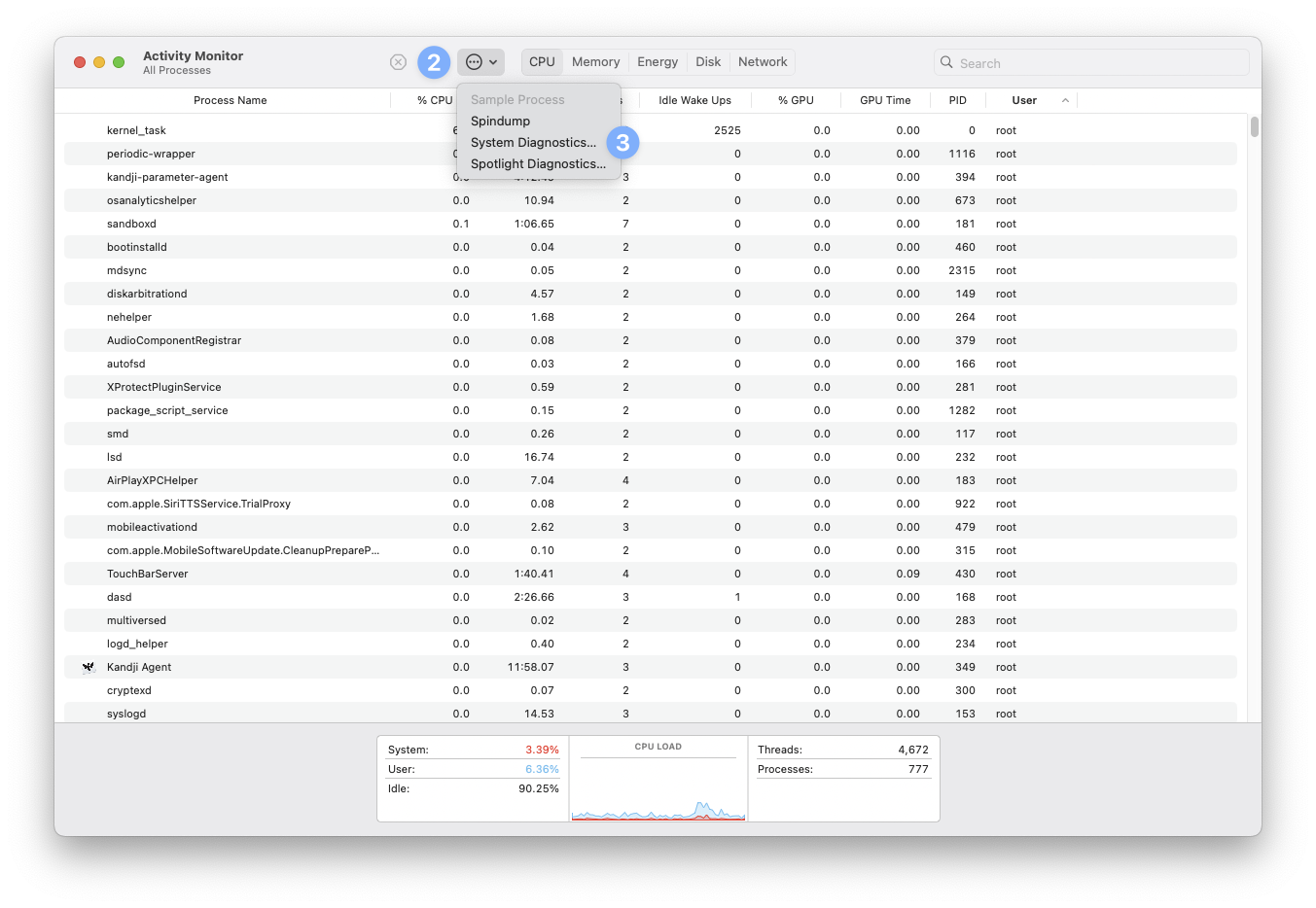

Activity Monitor interface showing the ellipses menu with System Diagnostics option for generating sysdiagnose reports
3

Accept privacy agreement

Read through and accept the privacy agreement.
4

Wait for completion

Wait for the progress bar to complete. Once done, a Finder window should appear with a tar.gz file shown.
5

Provide to support

If the sysdiagnose was requested by Iru Endpoint Support, please zip it and provide the entire bundle.
